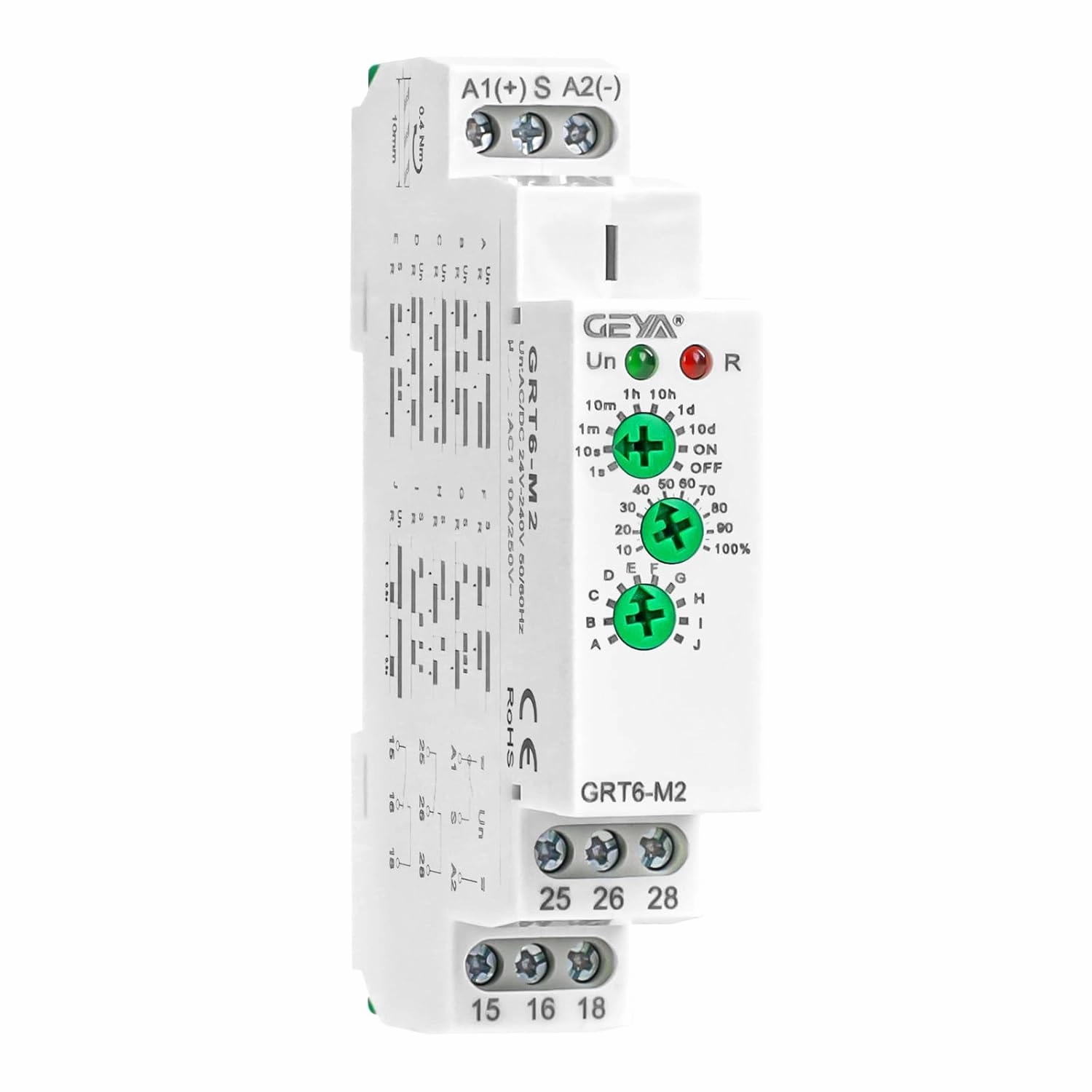

• FUNCTION & APPLICATION: GRT6-M2 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, wide working voltage AC DC 24-240V (50-60Hz), rated current of 10A. Output contact: 2SPDT (2NO2NC). This 24V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of lighting, heating, motors, machines, etc

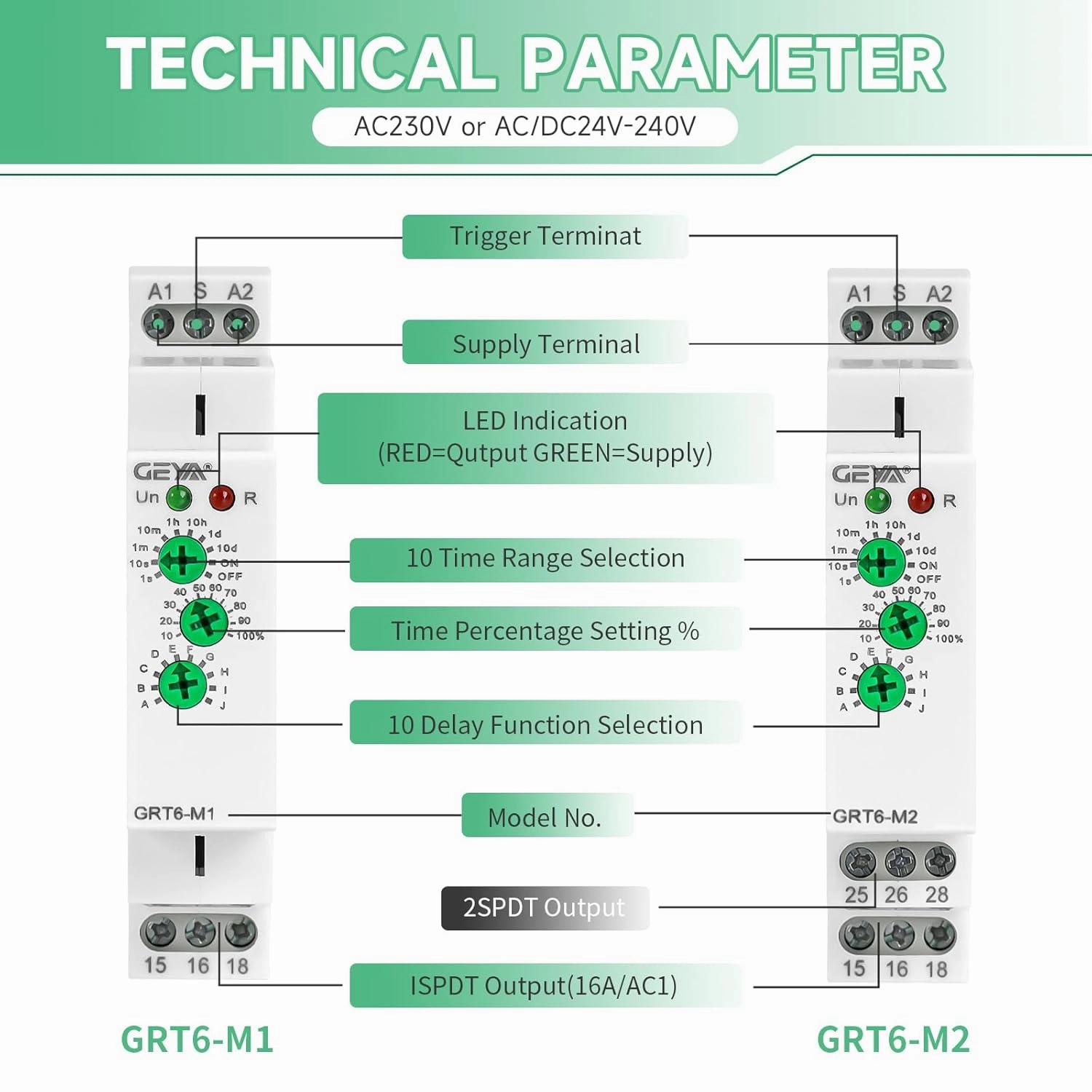

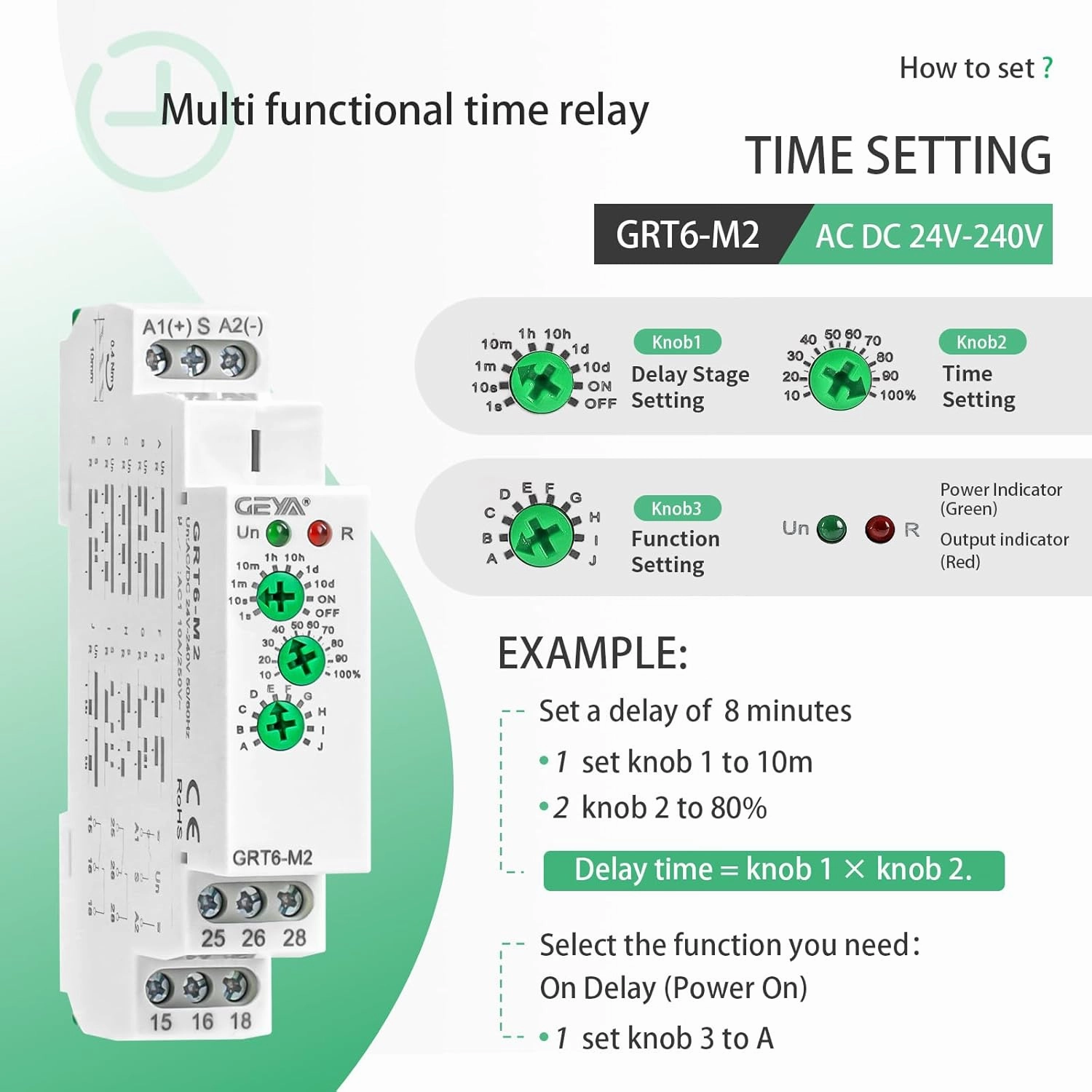

• INDICATOR BUTTON: grt6 m2 ac dc 24-240v the working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicating the stop of work). Refer to the detailed technical parameters for further customization and optimal performance: a. Select the desired function, e.g., A (Power-On Delay). b. Set the required delay time, e.g., 30 minutes. c. Adjust the time range knob to 1h. d. Turn the percentage knob to 50% for precise control. Please check the instructions and videos

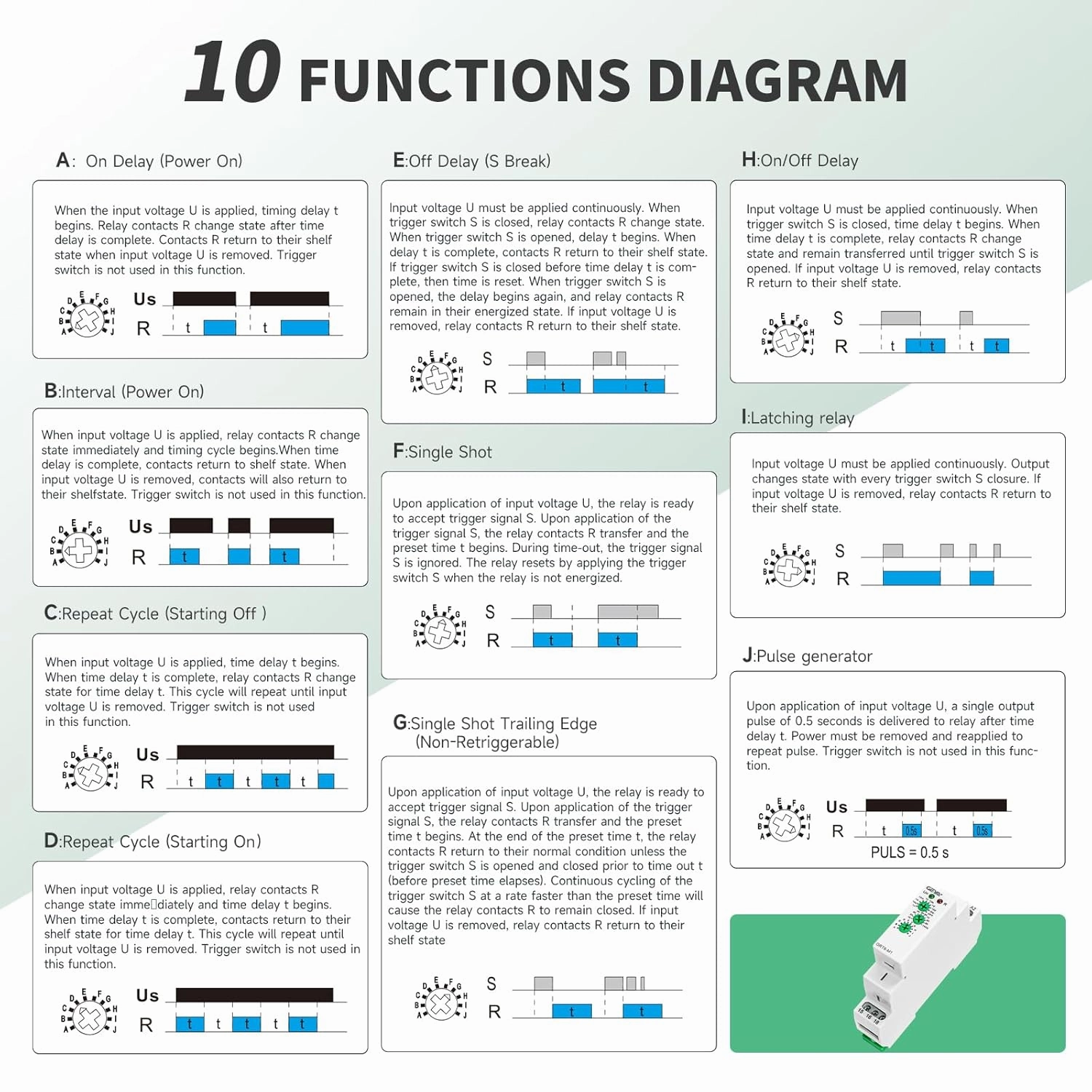

• Model of IGEYAPA GRT6 Time Relay: 1. GRT6-A: Delay opening relay; GRT6-B: Delay closing relay; GRT6-S： Asymmetric cycle timer relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT6-M: Multi functional time relay, covering GRT6 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON）， And function E as shown in the figure, F,G,H,I,J

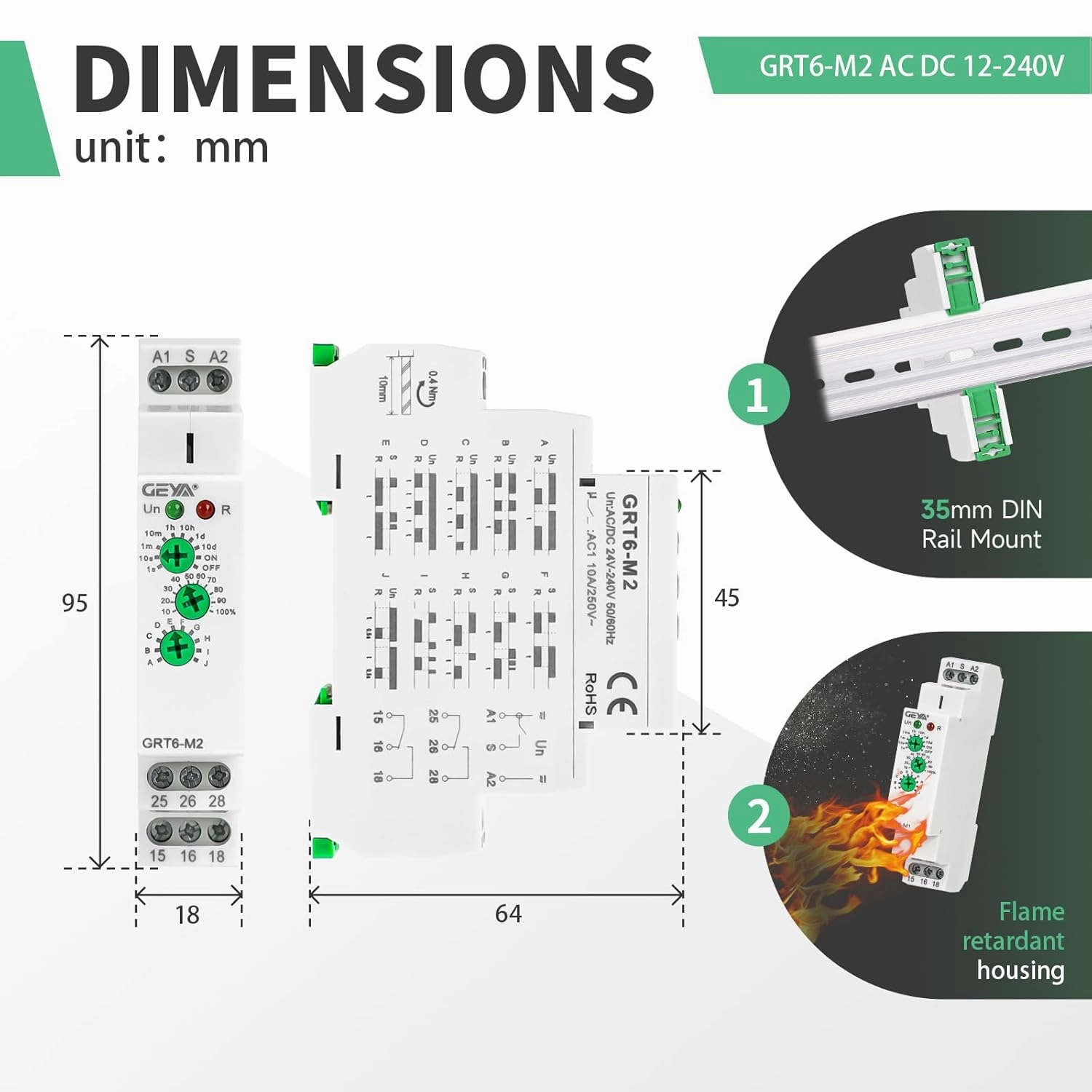

• Designed time relay: The GRT6 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
• WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time

• Product Dimensions ‏ : ‎ 3.68 x 0.9 x 2.88 inches; 2.8 ounces
• Date First Available ‏ : ‎ April 18, 2025
• Manufacturer ‏ : ‎ IGEYAPA
• Country of Origin ‏ : ‎ China
