• FUNCTION & APPLICATION: GRT8-M1 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, wide working voltage AC230V (50-60Hz), rated current of 16A. Output contact: 1SPDT (1NO1NC). This 12V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of changing lighting, heating, motors, machines, etc

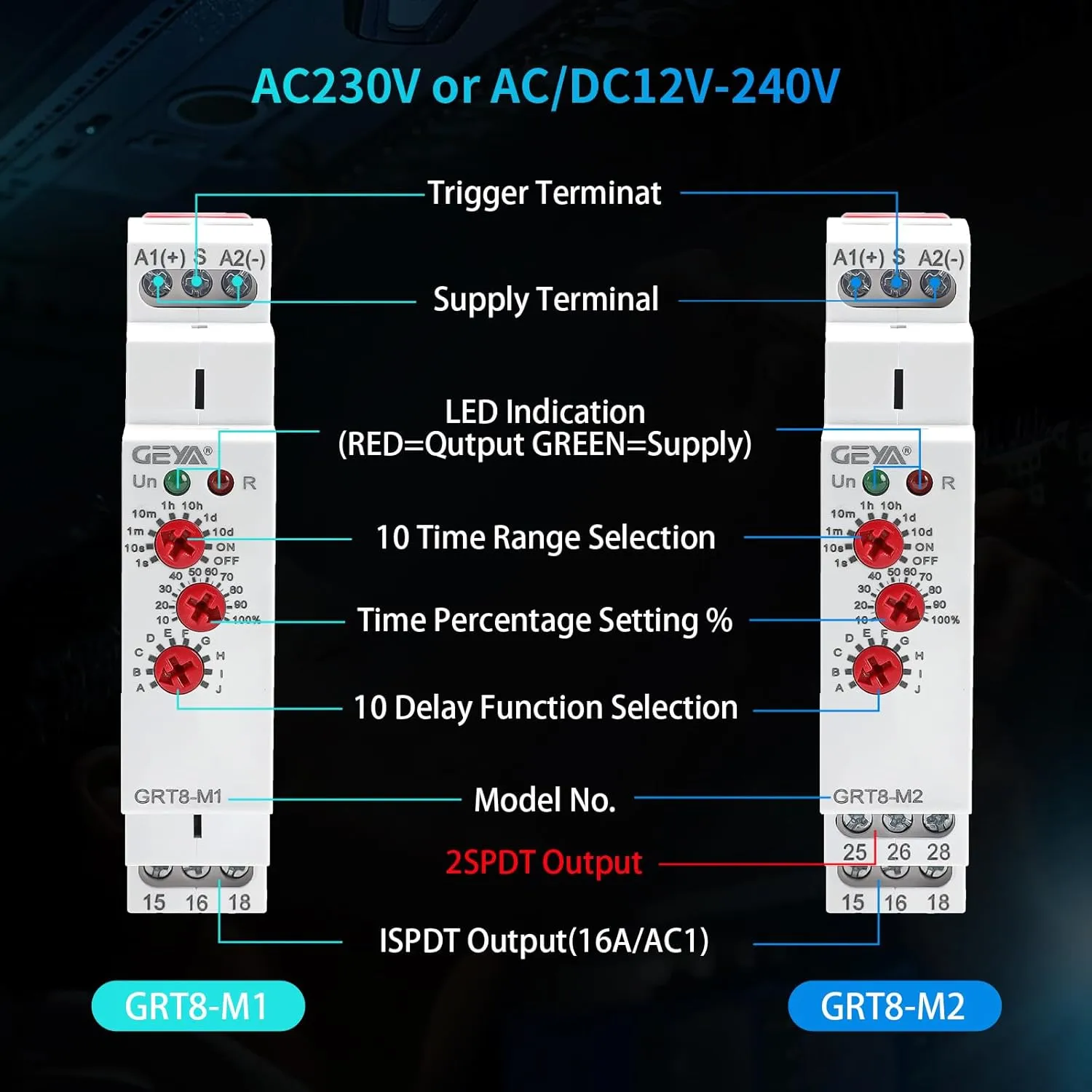

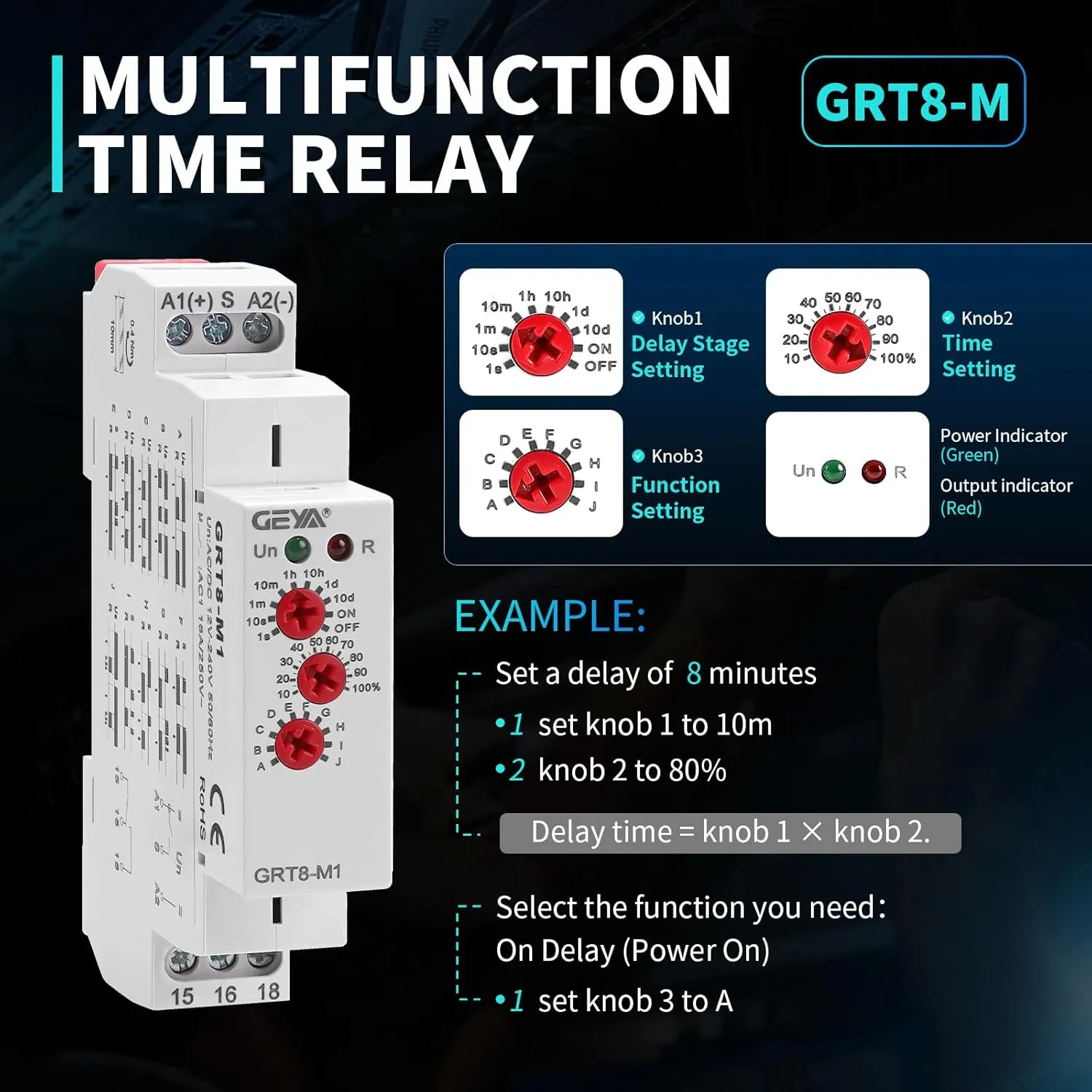

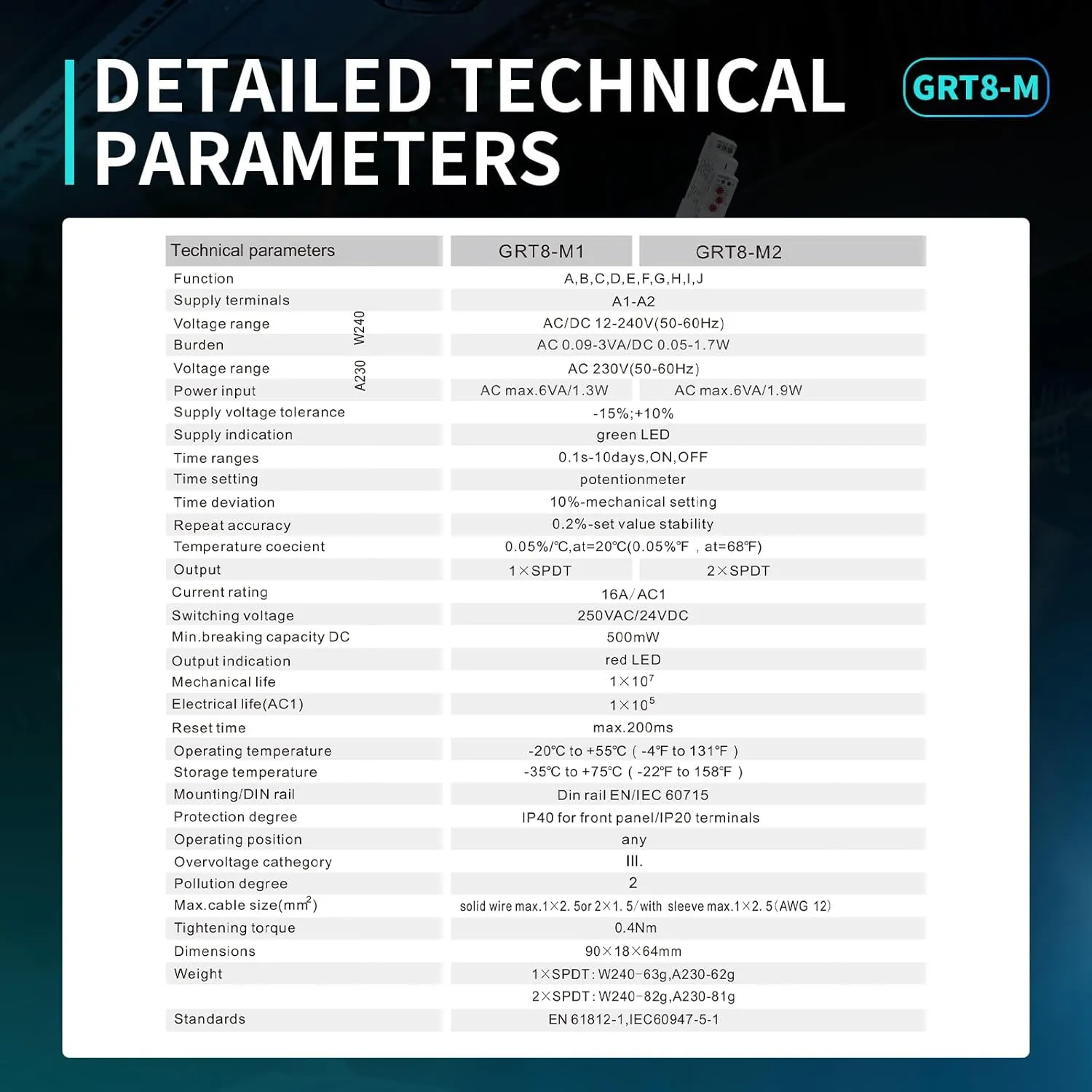

• INDICATOR BUTTON: grt8 m1 ac dc 12-240v the working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicating the stop of work). Refer to the detailed technical parameters for further customization and optimal performance: a. Select the desired function, e.g., A (Power-On Delay). b. Set the required delay time, e.g., 30 minutes. c. Adjust the time range knob to 1h. d. Turn the percentage knob to 50% for precise control. Please check the instructions and videos

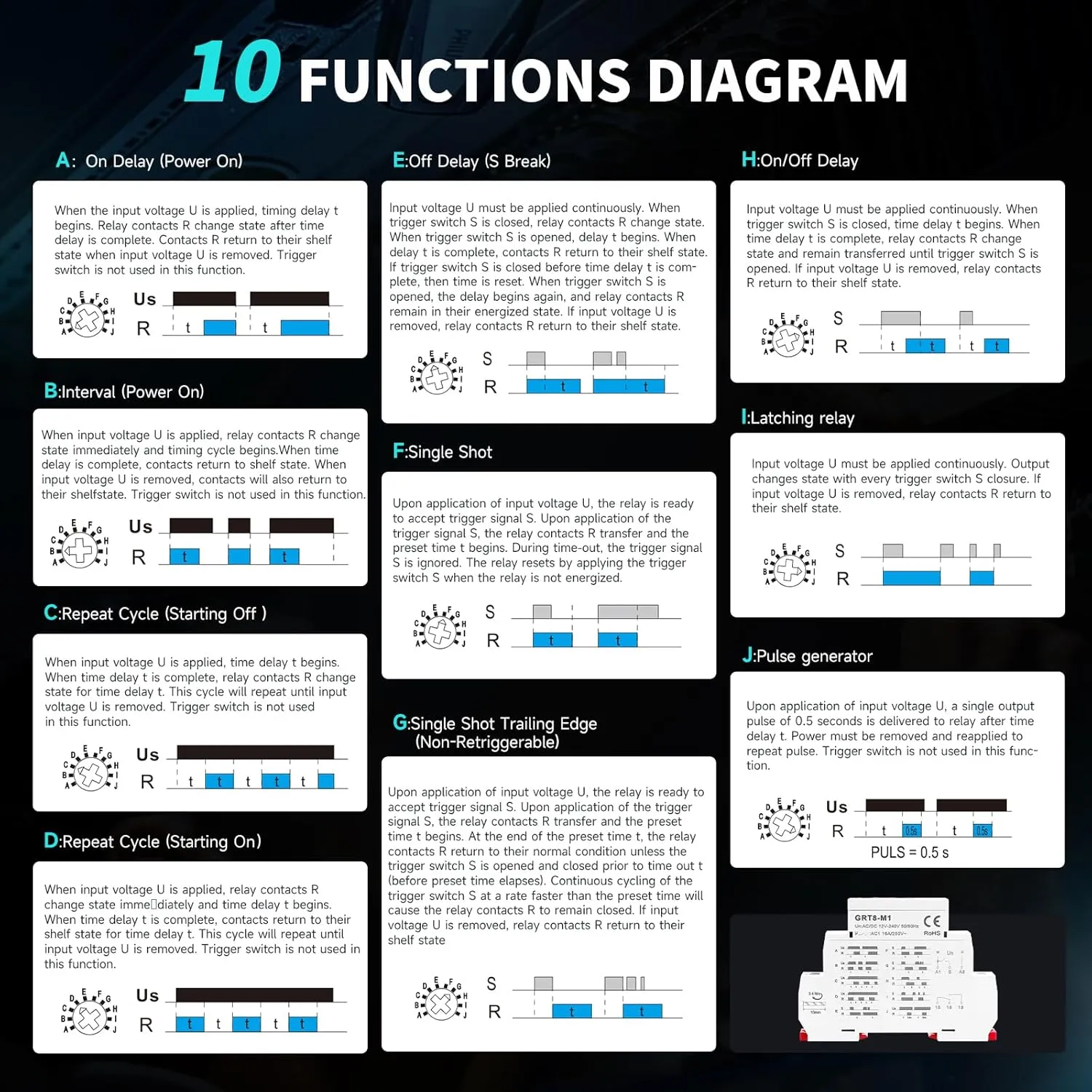

• Model of IGEYAPA GRT8 Time Relay: 1. GRT8-A: Delay opening relay; GRT8-B: Delay closing relay; GRT8-S： Loop relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON）， And function E as shown in the figure, F,G,H,I,J
• Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
• WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time. Please check the instructions and videos before operation, which can help you better use the relay

• Product Dimensions ‏ : ‎ 3.68 x 2.88 x 0.9 inches; 2.47 ounces
• Date First Available ‏ : ‎ January 9, 2025
• Manufacturer ‏ : ‎ IGEYAPA
• Country of Origin ‏ : ‎ China
